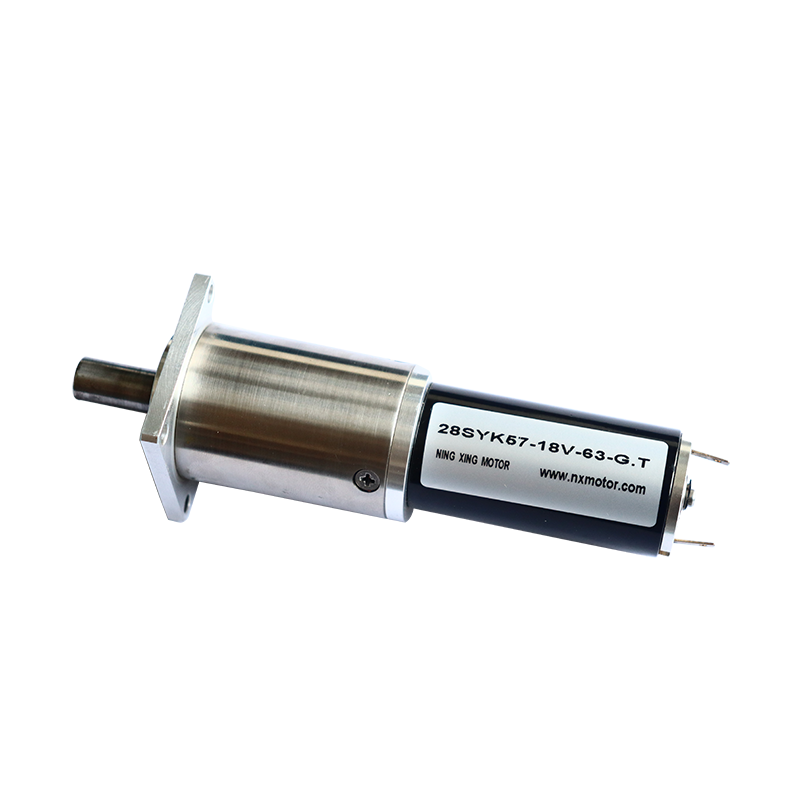

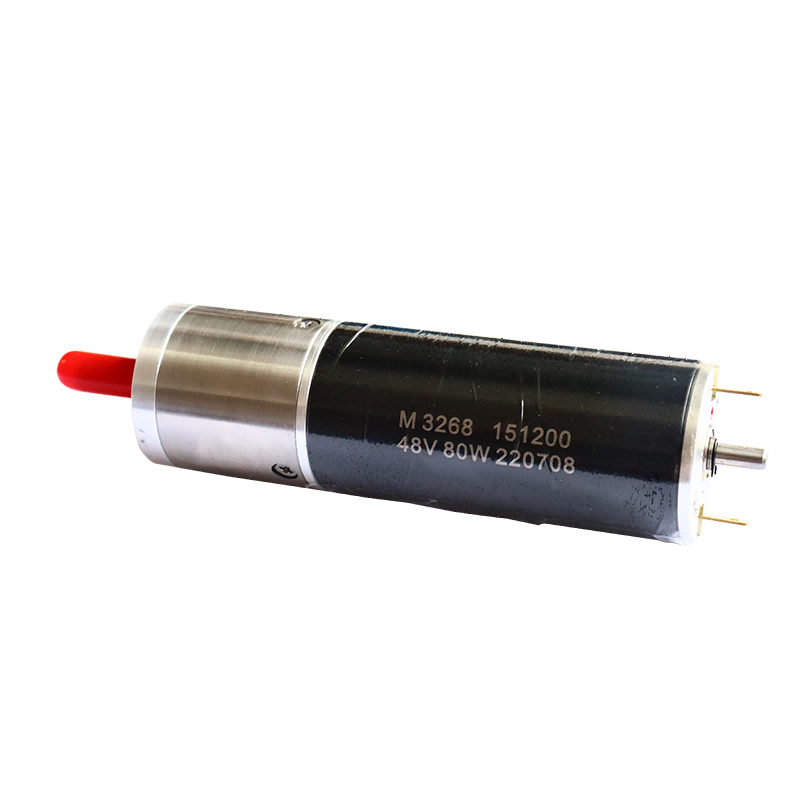

Ceann giarphláinéadach 32mm

Ningbo Ruixing Motor Co.,LTD is China manufacturer & supplier who mainly produces Planetary Gearhead 32mm with many years of experience. Hope to build business relationship with you. Planetary gearheads offer several advantages, such as high torque output, low backlash, and high efficiency. They are suitable for various applications, including robotics, medical devices, automotive and aerospace components, precision machinery, and camera gimbals.

Paraiméadar Teicniúil
Trastomhas giarbhosca		mm		32
Bearradh Seafta		roghnach/-		Bearradh Liathróid
Imréiteach Gathach		mm		≤0.1
Imréiteach Aiseach		mm		≤0.2
Cead Luas Ionchuir		rpm		≤10,000
Raon Teochta Molta		℃		-20 go +125
Fórsa Suiteála Cead		N		≤120
Ualach Aiseach		N		≤80
Ualach Gathach		N		≤100
Feidhmchláir tipiciúla
Feiste leighis		Táirgí digiteacha		UAV		Uathoibriú tionsclaíoch
faisnéis táirge
1		Céim	1	2	3		4		5
2		Uimhir an Ordaithe	1232001	1232008	1232036	1232071	1232137	1232202	1232389	1232540
3		Cóimheas	3.11	9.68	30.11	71.68	159.42	297.66	693.79	1428.77
4		Uimhir an Ordaithe	1232004	1232017	1232047	1232077	1232146	1232221	1232402	1232600
5		Cóimheas	4.00	14.93	46.46	80.14	178.23	344.06	765.21	1846.41
6		Uimhir an Ordaithe	1232005	1232022	1232051	1232085	1232170	1232244	1232423	1232663
7		Cóimheas	4.80	19.20	51.24	92.16	223.00	412.16	855.52	2548.04
8		Uimhir an Ordaithe		1232027	1232061	1232095	1232188	1232270	1232454	1232698
9		Cóimheas		23.04	62.01	110.59	266.24	530.84	988.89	3174.00
1		L1 (mm)	31.6	37.9	44.2		50.5		56.8
2		L(mm)	31.6	37.9	44.2		50.5		56.8
3		Torc(Nm)	1.0	1.5	2.5		3		5
4		Stail chasmhóiminte(Nm)	2.0	3.0	5		6		7.5
5		Uaséifeachtúlacht(%)	90	81	73		65		59
6		Meáchan(g)	125	147	169		191		213
7		Aislais Gan Ualach(°)	1	1.5	1.5		2		2
