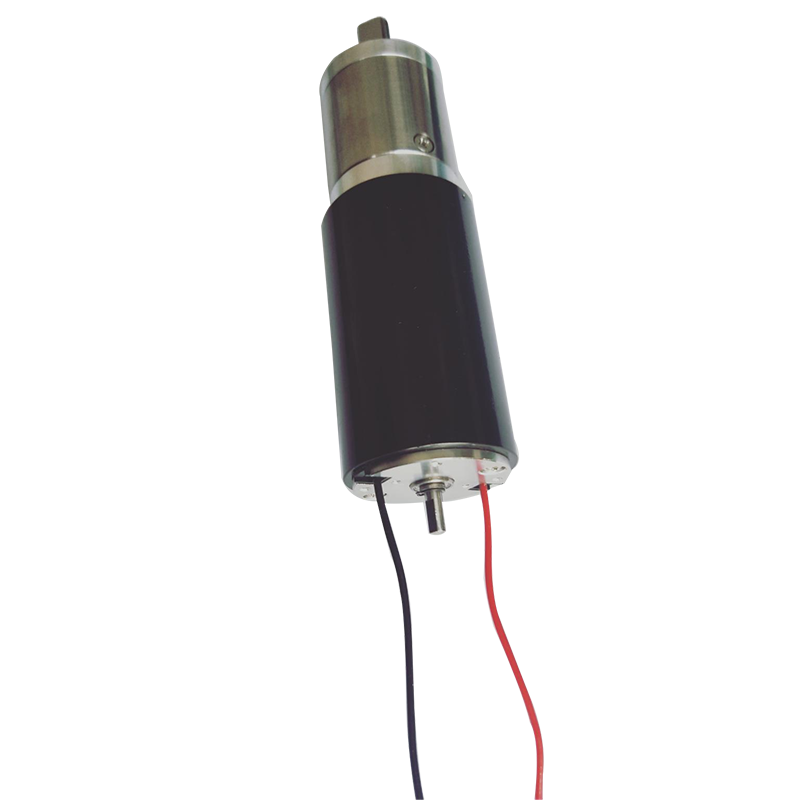

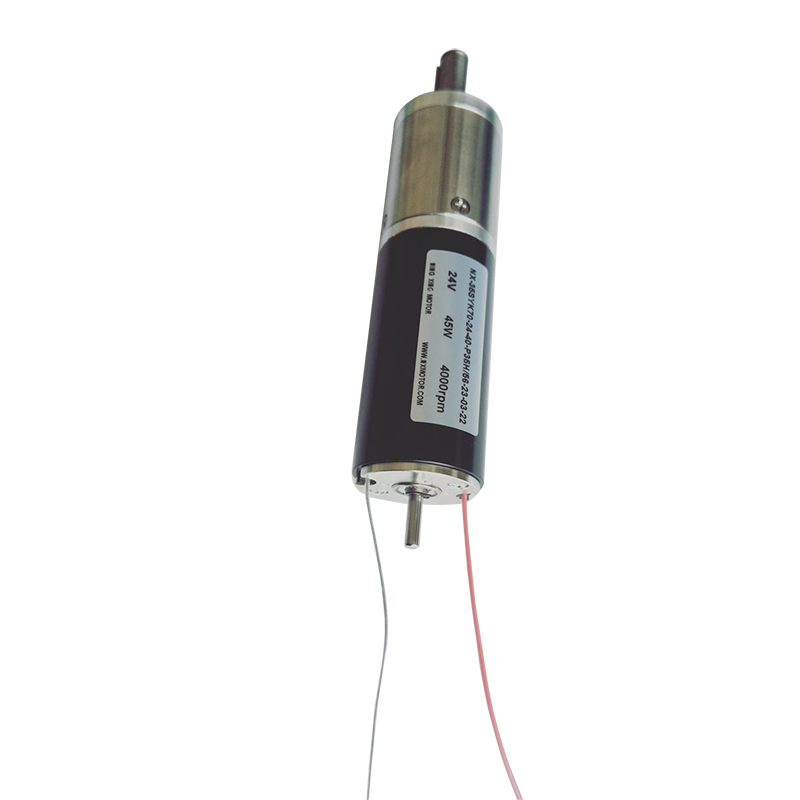

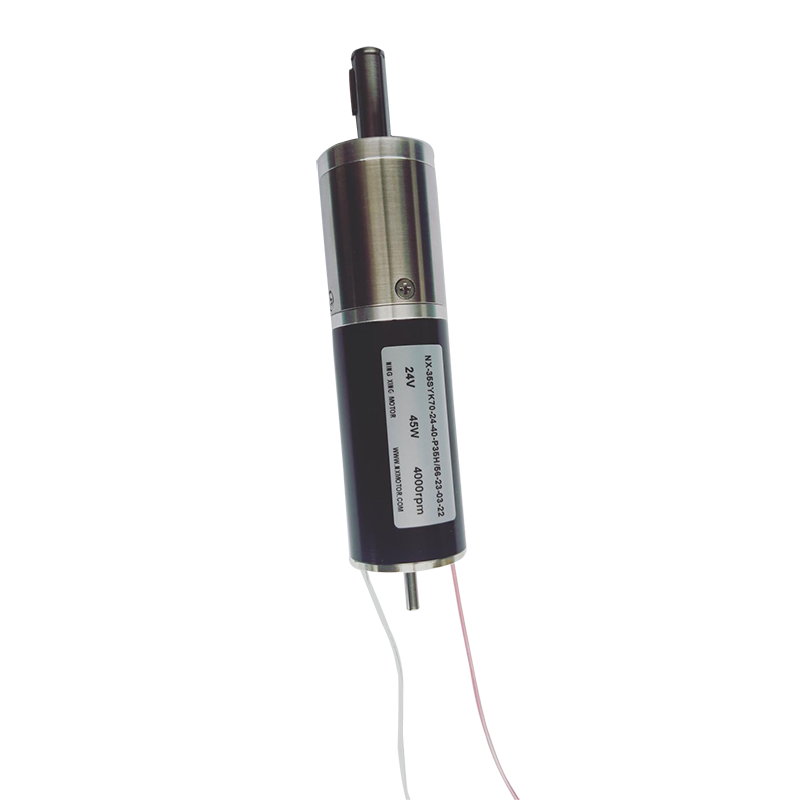

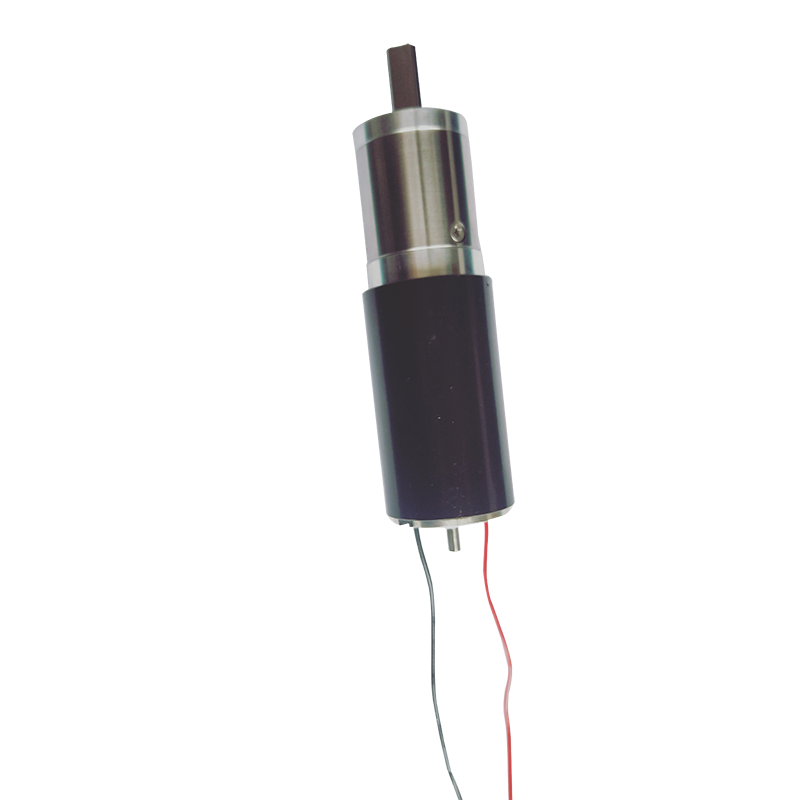

Ceann giar phláinéadach 35mm

Is féidir leat a bheith cinnte Ruixing Planetary Gearhead 35mm a cheannach ónár mhonarcha agus cuirfimid an tseirbhís iar-díola is fearr agus seachadadh tráthúil ar fáil duit.

Seol Fiosrúchán

Cur síos ar an Táirge

You can rest assured to buy Ruixing Planetary Gearhead 35mm from our factory and we will offer you the best after-sale service and timely delivery. To summarize, a 35mm planetary gearhead is an effective gearbox that provides precise motion control and high torque output for small electric motors and other precision applications.

Paraiméadar Teicníochta P35H

Paraiméadar Teicniúil

Paraiméadar Teicniúil
Trastomhas giarbhosca	mm		35
Bearradh Seafta	roghnach/-		Bearradh Liathróid
Imréiteach Gathach	mm		≤0.1
Imréiteach Aiseach	mm		≤0.2
Cead Luas Ionchuir	rpm		≤10,000
Raon Teochta Molta	℃		-20 go +125
Fórsa Suiteála Cead	N		≤120
Ualach Aiseach	N		≤80
Ualach Gathach	N		≤100
Feidhmchláir tipiciúla
Feiste leighis	Táirgí digiteacha		UAV		Uathoibriú tionsclaíoch
faisnéis táirge
1	Céim	1	2	3		4		5
2	Uimhir an Ordaithe	1235003	1235008	1235024	1235043	1235060	1235099	1235132	1235198
3	Cóimheas	4.00	12.25	42.88	84.00	150.06	361.00	525.22	1444.00
4	Uimhir an Ordaithe	1235004	1235010	1235031	1235044	1235070	1235102	1235144	1235215
5	Cóimheas	4.75	14.00	56.00	90.25	196.00	384.00	686.00	1824.00
6	Uimhir an Ordaithe	1235006	1235011	1235034	1235053	1235082	1235109	1235152	1235224
7	Cóimheas	6.00	16.00	64.00	144.00	256.00	456.00	784.00	2166.00
8	Uimhir an Ordaithe		1235016	1235040		1235091		1235172	1235235
9	Cóimheas		21.00	76.00		304.00		1024.00	2736.00
1	L(mm)	40.6	47.4	54.0		60.6		67.2
2	Torc(Nm)	3.0	8.0	16		16		20
3	Torque Stall(Nm)	5.0	12	25		25		30
4	Uaséifeachtúlacht(%)	90	81	73		65		59
5	Meáchan(g)	210	245	280		315		350
6	Aislais Gan Ualach(°）	1	1.5	1.5		2		2
