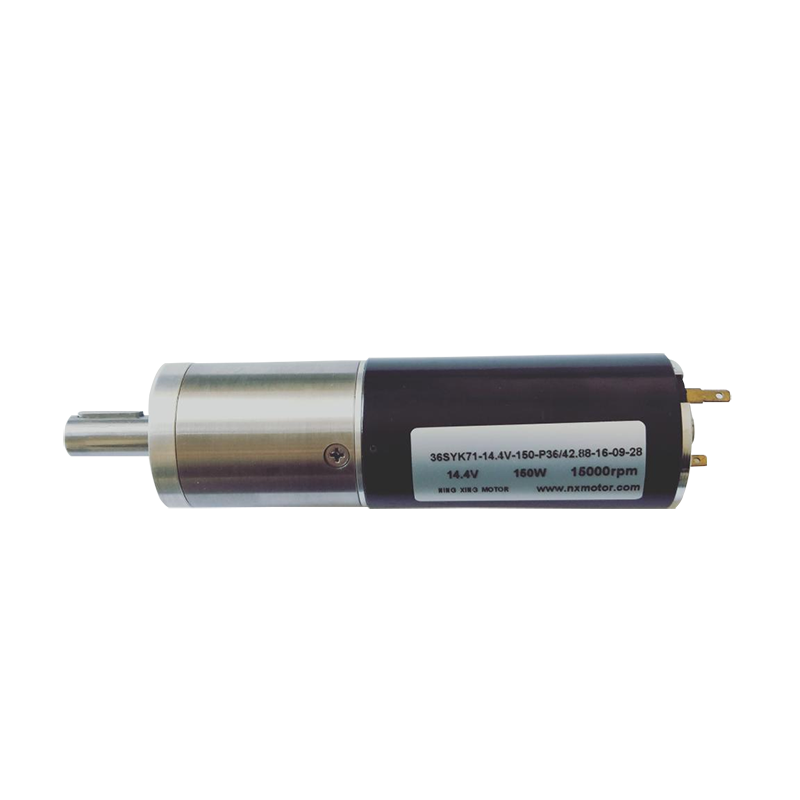

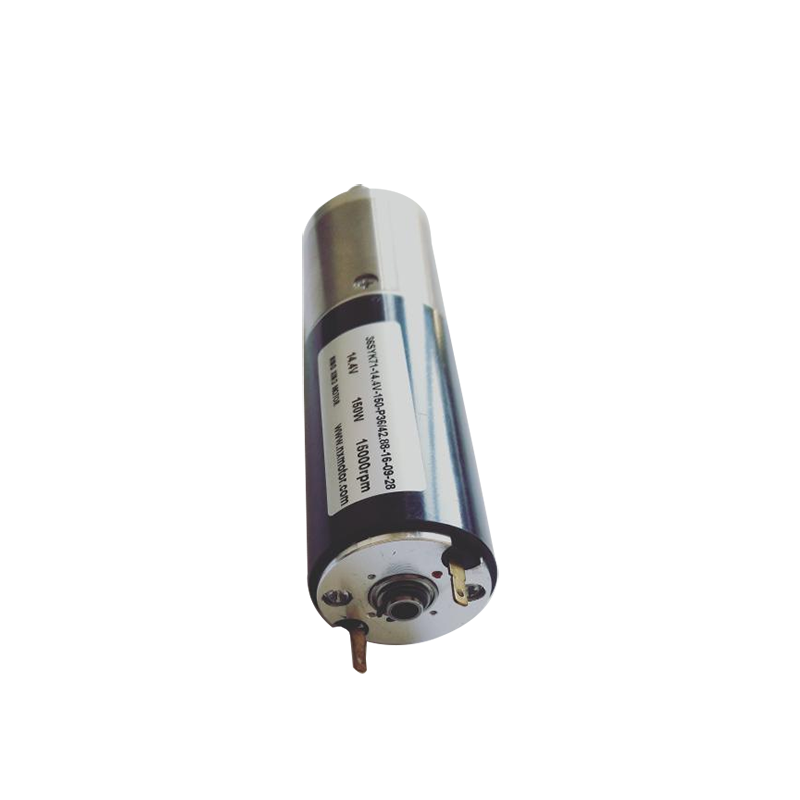

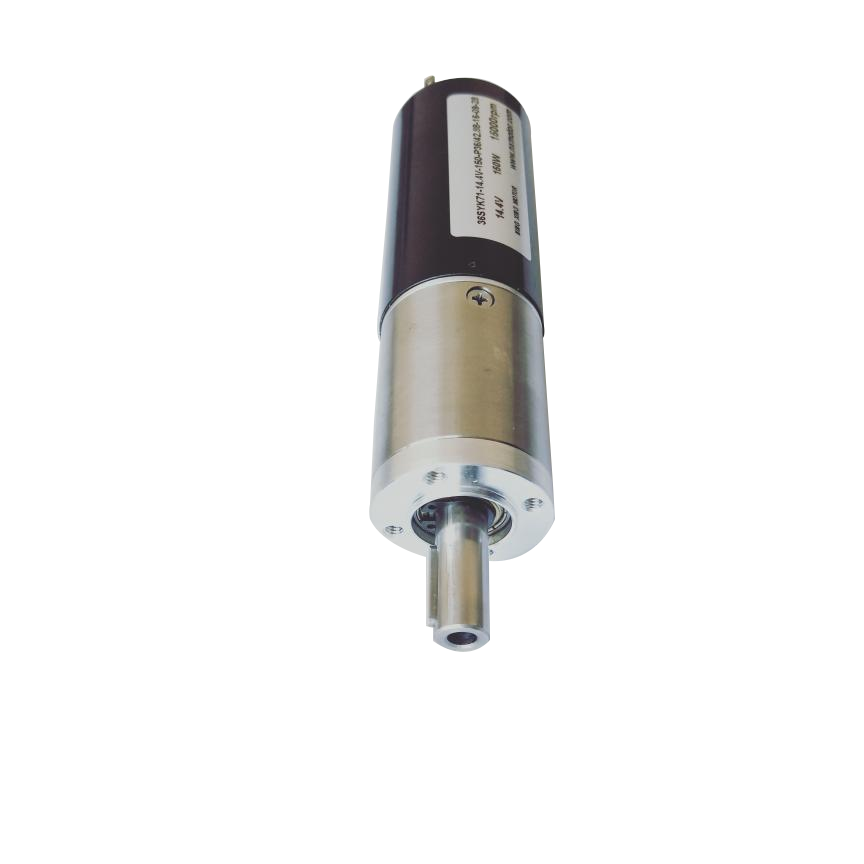

Ceann giar phláinéadach 36mm

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery. The 36mm planetary gearhead, in particular, is often used in applications that require a high output torque, such as:Industrial automation, Material handling, Printing machinery, Food processing equipment, Packaging machinery. In these applications, the 36mm planetary gearhead can provide precise motion control and increased torque output, improving the efficiency and reliability of the machinery.

Paraiméadar Teicniúil
Trastomhas giarbhosca		mm		36
Bearradh Seafta		roghnach/-		Bearradh Liathróid
Imréiteach Gathach		mm		≤0.1
Imréiteach Aiseach		mm		≤0.2
Cead Luas Ionchuir		rpm		≤10,000
Raon Teochta Molta		℃		-20 go +125
Fórsa Suiteála Cead		N		≤120
Ualach Aiseach		N		≤80
Ualach Gathach		N		≤100
Feidhmchláir tipiciúla
Feiste leighis		Táirgí digiteacha		UAV		Uathoibriú tionsclaíoch
faisnéis táirge
1		Céim	1	2	3		4		5
2		Uimhir an Ordaithe	1236002	1236010	1236035	1236073	1236097	1236159	1236274	1236402
3		Cóimheas	3.75	14.06	52.73	141.56	197.75	474.27	114,844	3082.77
4		Uimhir an Ordaithe	1236004	1236014	1236042	1236077	1236109	1236182	1236303	1236432
5		Cóimheas	4.67	17.50	65.63	169.00	246.09	660.59	1429.17	4293.85
6		Uimhir an Ordaithe	1236006	1236019	1236051		1236124	1236198	1236333	1236449
7		Cóimheas	6.50	21.78	81.67		306.25	920.11	1778.52	5980.72
8		Uimhir an Ordaithe		1236024	1236061		1236142		1236362
9		Cóimheas		30.33	101.63		381.11		2213.27
1		L（mm)	36	43.3	50.6		57.9		65.2
2		Torc(Nm)	4.0	8.0	16.0		16.0		20
3		Stail chasmhóiminte(Nm)	5.0	12.0	25.0		25.0		30
4		Uaséifeachtúlacht(%)	90	81	73		65		59
5		Meáchan(g)	210	245	280		315		350
6		Aislais Gan Ualach(°）	0.8	1.0	1.0		1.0		1.2
